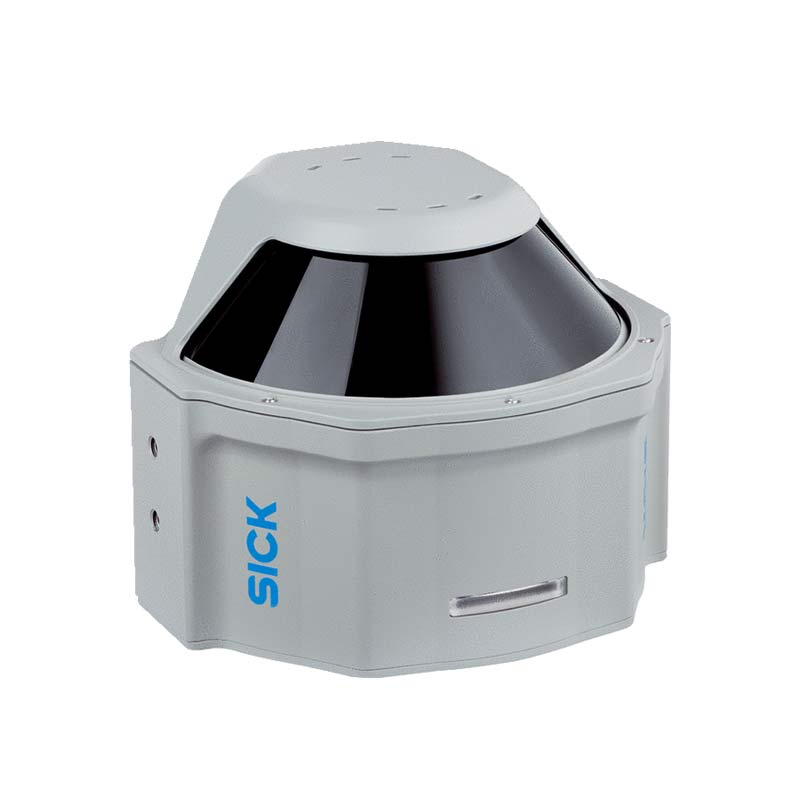

SICK 3D LiDAR sensors MRS6000
Make the difference visible with multilayers
- The high scanning point density across 24 layers enables reliable detection
- Special mirror technology ensures high scanning field stability
- High resolution (vertical and horizontal) for the precise and rapid detection of a large working range
- Measurement data transferred in real time via the 1-Gbit Ethernet connection
- Compact and rugged design with IP67 enclosure rating for adverse ambient conditions
Description
- Application: Outdoor
- Scanning range: At 10% remission 30 m, At 90% remission 75 m
- Aperture angle: Horizontal (120°), Vertical (15°)
- Scanning frequency: 10 Hz
- Enclosure rating: IP65, IP67
- Gewicht: 2.2 kg
Overview
Make the difference visible with multilayers
The MRS6000 3D LiDAR sensor uses a high scanning point density and an aperture angle of 120° to reliably detect its environment across 24 layers. Special mirror technology ensures high scanning field stability. With the aid of multi-echo technology, the sensor scans through rain, dust, and fog, while simultaneously multiplying the point density. These properties are particularly useful for creating a 3D point cloud without any gaps, which can be used to tackle a whole host of demanding applications.
At a glance
- Gap-free detection across 24 scanning layers at an aperture angle of 120°
- Fine angular resolution with high scanning point density
- Reliability thanks to multi-echo technology
- Convenient and customer-friendly web server interface for configuration
