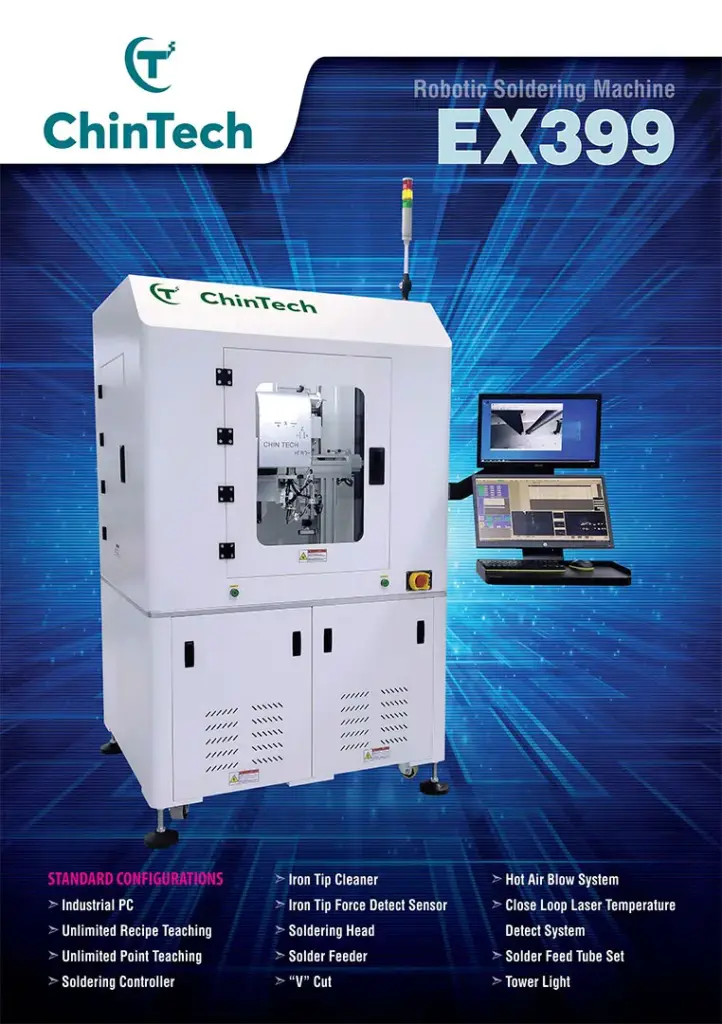

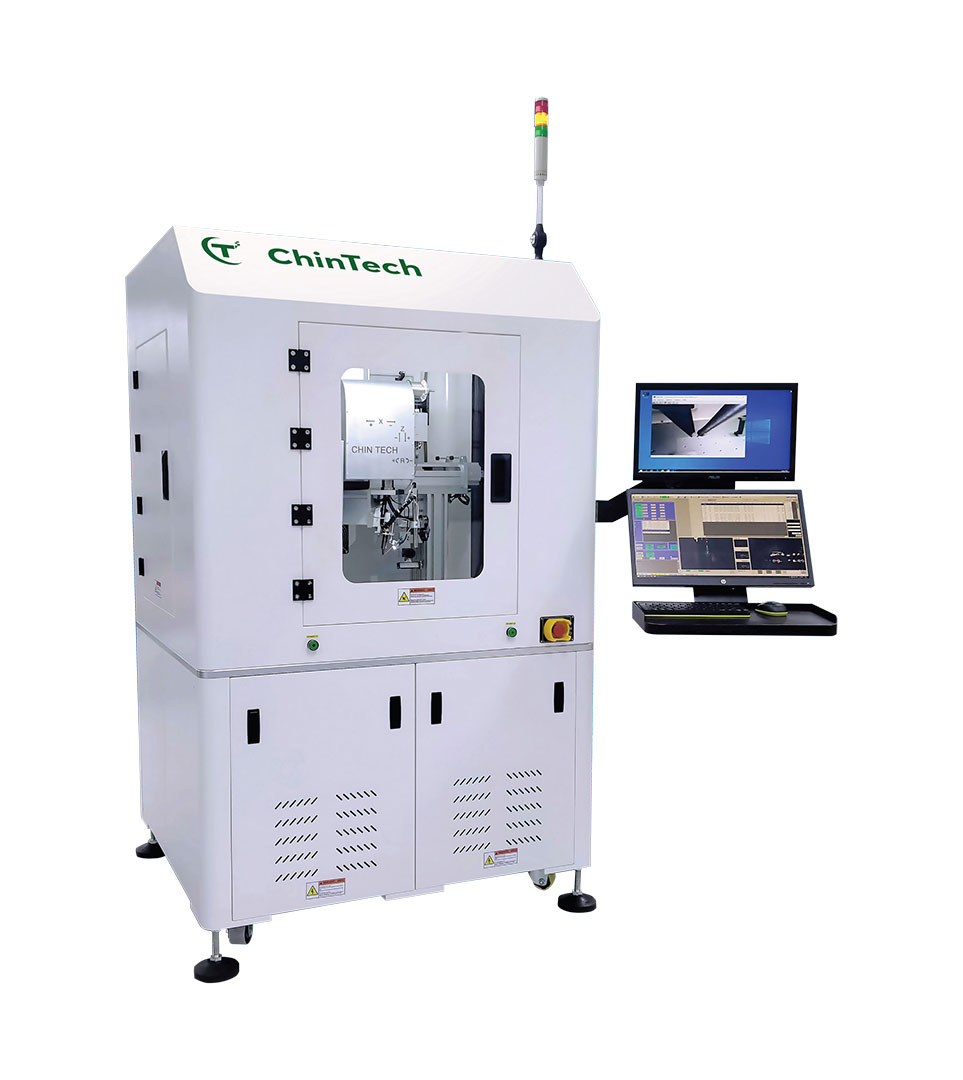

Chin Tech EX399 Robotic Soldering Machine
- 5 axis controlled by AC Servo Motor and Ball Screw
- Industrial PC
- Unlimited Recipe Teaching
- Unlimited Point Teaching
- Soldering Controller
- Iron-tip Cleaner

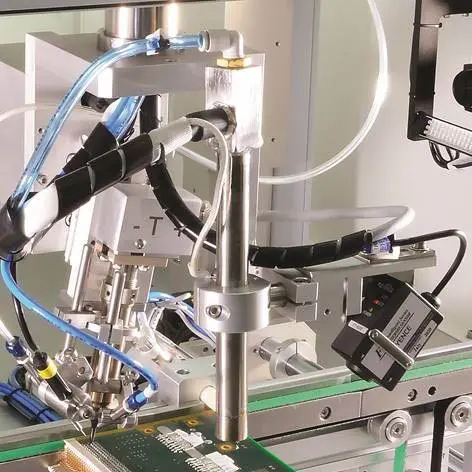

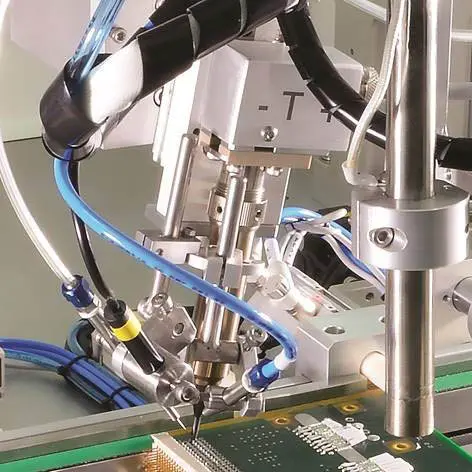

- Soldering Head
- Dual Sensor Auto Feeding
- Solder Feeder
- V cut Solder Wire Feeder
- Force Sensor for Iron Tip
- Conveyor System
Description
Chin Tech EX399
5-axis Robotic Soldering Machine
WE DON'T SELL MACHINES We sell BREAK-THRU SOLUTIONS That saves you time and money

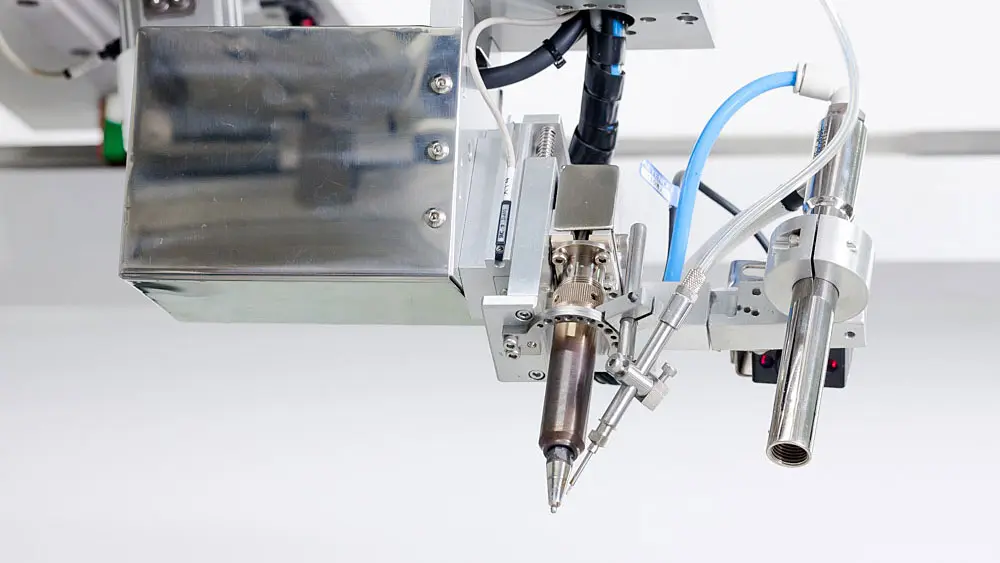

Convection & Conduction Combination
SOLUTION #1 : CCC
Our patented Convection and Conduction Combination ensures complete barrel fill even for PCB thicker than 2mm
Shadowed Component Soldering
SOLUTION #2: SCS
Shadowed Component Soldering is a problem to others but NOT FOR US with our patented 5-Axis On-the-fly theta soldering head unit, all components ARE solderable irrespective of heights
Offline Gerber Programming
SOLUTION #3: OGP
Offline Gerber Programming saves time and money comparing to the laborious teach pendant method. New programs are created in a jiffy. Suitable for ad-hoc NPI and R&D applications
STANDARD CONFIGURATION
- Robot Body
- Industrial PC
- Unlimited Recipe Teaching
- Unlimited Point Teaching
- Soldering Controller
- Bar Code Scanner
- Iron Tip Cleaner
- Soldering Head
- Solder Feeder
- Solder Feed Tube Set
